Physics

Collision Types

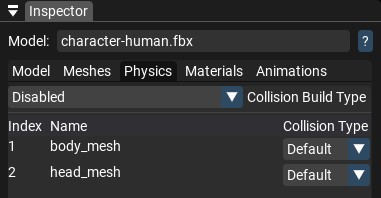

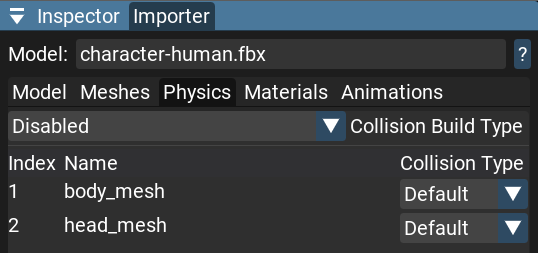

In the Physics tab, you can configure collision shapes for the model asset.

At the top, a Collision Build Type dropdown sets the default collision algorithm for the entire model.

Below that, a list of all mesh colliders is displayed. You can choose the collision type for each mesh collider individually from the dropdown list.

The available collision types are:

- Disabled - No collision.

- TriangleMesh - A precise collision shape that matches the mesh exactly.

- ConvexHull - A simplified convex shape that approximates the mesh.

- Default - Uses the default collision type specified in the model-level setting above.
