UIAnchor

Classes

UIAnchor : Component

Note

UIFrame component is automatically added to the node if it is not already present

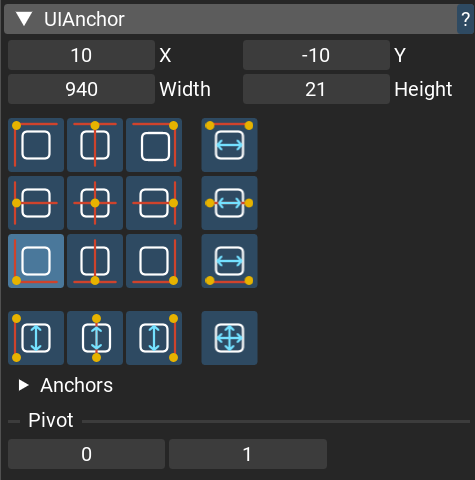

This component adjusts node’s position according to the parent UIFrame, using a specified anchor value and top, right, bottom, and left insets.

Top-left corner of the screen corresponds to anchor = float2(0, 0), bottom-right is anchor = float2(1, 1).

Usage example:

var node = create_node()
add_component(node, new UIText(text:="Hello, world!"))

// text will be anchored to parent node with 10 pixels insets from all sides
add_component(node, new UIAnchor(
    anchorMin = TOP_LEFT_ANCHOR, // equivalent to anchorMin = float2(0, 0)
    anchorMax = BOTTOM_RIGHT_ANCHOR, // equivalent to anchorMax = float2(1, 1)
    top = 10,
    left = 10,
    right = 10,
    bottom = 10
))
Fields:

  • anchorMin : float2 - Position anchor min value (top-left corner).

  • anchorMax : float2 - Position anchor max value (bottom-right corner).

  • left : float - Left inset in pixels.

  • top : float - Top inset in pixels.

  • right : float - Right inset in pixels.

  • bottom : float - Bottom inset in pixels.

UIAnchor.apply_anchoring(frame: UIFrame?; parent: NodeId; parent_frame: UIFrame?)

Applies anchoring to the node using parent node. It is called automatically every frame.

Arguments:
