Collider

Collider defines parameters for interaction with other physics objects. The most important parameter is shapes, a collection of geometric volumes used in collision detection. The component also defines other collision parameters, such as friction, restitution, and collision layer. A node with only a Collider and no RigidBody will be static.

Type aliases

variant Shape

Represents a shape for a Collider. See .shape operator how to use it.

Variants:

  • box : tuple<size:float3;translation:float3;rotation: quat4 > - Represents a box shape

  • sphere : tuple<radius:float;translation:float3> - Represents a sphere shape

  • capsule : tuple<radius:float;height:float;axis: AxisDirection ;translation:float3;rotation: quat4 > - Represents a capsule shape

  • cylinder : tuple<radius:float;height:float;axis: AxisDirection ;translation:float3;rotation: quat4 > - Represents a cylinder shape

  • mesh : tuple<mesh: CollisionId ;scale:float3;translation:float3;rotation: quat4 > - Represents an arbitrary triangle mesh

  • empty : int - Represents no collider

Classes

Collider : NativeComponent

A generic collider that can consist of several shapes.

Example:

let node = create_node()
add_component(node, new RigidBody())
add_component(node, new Collider(shapes = [
    box_shape(),
    sphere_shape(),
]))

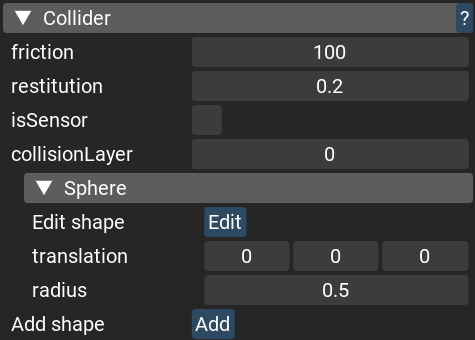

Properties:

Collider.friction: float
Collider.friction =(value: float)

The of friction of a body, which is used in collisions to calculate the combined coefficient of friction (COF) between two objects. The COF is calculated as sqrt(friction1 * friction2). A value of -1 means that it is set to what was set with set_default_friction(). See the guide on how to setup friction. Default value is -1.

Arguments:

  • value : float

Collider.restitution: float
Collider.restitution =(value: float)

The restitution of a body, which is used in collisions to calculate the combined coefficient of restitution (COR) between two objects. The COR is calculated as max(restitution1, restitution1). This COR represents the “bounciness” of a collision and should be between 0 (perfectly inelastic collision) and 1 (perfectly elastic collision). The formula is Coefficient of Restitution = |Relative velocity of separation after collision| / |Relative velocity of approach before collision|. The default value is 0.0, but you can change it with set_default_restitution().

Arguments:

  • value : float

Collider.isSensor: bool
Collider.isSensor =(value: bool)

Determines whether a body should be passable by other bodies. This is useful in combination with collision callback to make a trigger volume. Default is false.

Arguments:

  • value : bool

Collider.collisionLayer: uint8
Collider.collisionLayer =(value: uint8)

Represents the collision layer that the body belongs to, with values ranging from 0 to 31. Collision layers can be set to collide or not collide with other layers using set_collision_layer_mask and set_collision_between_layers. It is recommended to define a custom global enum for collision layer names for better readability. Default is 0.

Arguments:

  • value : uint8

Collider.shapes =(shapes: array<Shape>)

Apply shapes for a Collider, replacing all shapes that was before.

Usage example:

add_component(node, new Collider())
get_component(node) $(var coll: Collider?) {
    coll.shapes = [
        box_shape(),
        box_shape(),
        sphere_shape(),
        ...
    ]
}
Arguments:

  • shapes : array< Shape >

Collider.shapes: array<Shape>

Get all shapes of a Collider.

Collider.shape =(shape: Shape)

Change the shape of the collider.

This function internally recreates the collider, and may produce performance issues if using it too often. It is acceptable to use this function for on-off events, e.g. instantaneous changing the height of a character when it is crouching. It is undesirable to use this function every frame, e.g. smoothly changing the height of a character when it is crouching.

Note

Prefer to not using this function for moving the collider. E.g. if you have a sliding door and you want to move the collider, consider moving the position of the scene node instead.

Arguments:

  • shape : Shape - The new shape

Usage example:

add_component(node, new Collider(shape = capsule_shape([height = 2.0])))
get_component(node) $(var coll: Collider?) {
    coll.shape = capsule_shape([height = 1.5])
}
Collider.shapeCount: int

Get shape count of a Collider.

Collider.shape: Shape

Get a shape of a Collider.

If the collider has many shapes, get the first shape.

Usage example:

add_component(node, new Collider(shape = capsule_shape([height = 2.0])))
get_component(node) $(var coll: Collider?) {
    // Get the height of the capsule
    let height = (coll.shape as capsule).height

    // Modify the height of the capsule
    coll.shape = capsule_shape([height = height - 0.5])
}

Functions

set_shape(collider: Collider?; index: int; shape: Shape): bool

Change a shape of a Collider. If the collider has many shapes, provide an index of the shape that will be changed.

This function recreates all the shapes of the collider, and may produce performance issues if using it too often. It is acceptable to use this function for on-off events, e.g. instantaneous changing the height of a character when it is crouching. It is undesirable to use this function every frame, e.g. smoothly changing the height of a character when it is crouching.

If there is only a single shape in the Collider, consider using .shape= operator instead.

Note

Prefer to not using this function for moving the collider. E.g. if you have a sliding door and you want to move the collider, consider moving the position of the scene node instead.

Arguments:

  • collider : Collider ? - The Collider component

  • index : int - The index of the shape. Values < 0 are treated as an offset from the end of the list.

  • shape : Shape - The new shape

Usage example:

add_component(node, new Collider(shape = capsule_shape([height = 2.0])))
get_component(node) $(var coll: Collider?) {
    set_shape(coll, 0, capsule_shape([height = 1.5]))
}
get_shapes(collider: Collider?; result: array<Shape>): int

Get all shapes of a Collider.

This is a more optimized version of .shapes which does not allocate an array

Arguments:
get_shape(collider: Collider?; index: int = 0): Shape

Get one of the shapes of a Collider.

Note that to change a shape you need to call set_shape () : bool

If there is only a single shape in the Collider, consider using .shape operator instead.

Arguments:

  • collider : Collider ? - The Collider component

  • index : int - The index of the shape. Values < 0 are treated as an offset from the end of the list.

Usage example:

add_component(node, new Collider(shapes = [
    box_shape(),
    sphere_shape(),
)
get_component(node) $(var coll: Collider?) {
    let sphere = get_shape(coll, 1) as sphere
    let radius = sphere.radius
}
box_shape(size: float3 = float3(1f, 1f, 1f); translation: float3 = float3(0f, 0f, 0f); rotation: quat4 = quat4()): Shape

Create box Shape for Collider

Usage example:

add_component(node, new Collider(shape = box_shape()))
Arguments:

  • size : float3

  • translation : float3

  • rotation : quat4

sphere_shape(radius: float = 0.5f; translation: float3 = float3(0f, 0f, 0f)): Shape

Create sphere Shape for Collider

Usage example:

add_component(node, new Collider(shape = sphere_shape()))
Arguments:

  • radius : float

  • translation : float3

cylinder_shape(radius: float = 0.5f; height: float = 2f; axis: AxisDirection = public_components::AxisDirection.YAxis; translation: float3 = float3(0f, 0f, 0f); rotation: quat4 = quat4()): Shape

Create cylinder Shape for Collider

Usage example:

add_component(node, new Collider(shape = cylinder_shape(0.5, 2.0, AxisDirection.YAxis, float3())))
Arguments:

  • radius : float

  • height : float

  • axis : AxisDirection

  • translation : float3

  • rotation : quat4

capsule_shape(radius: float = 0.5f; height: float = 2f; axis: AxisDirection = public_components::AxisDirection.YAxis; translation: float3 = float3(0f, 0f, 0f); rotation: quat4 = quat4()): Shape

Create capsule Shape for Collider

Usage example:

add_component(node, new Collider(shape = capsule_shape(0.5, 2.0, AxisDirection.YAxis, float3())))
Arguments:

  • radius : float

  • height : float

  • axis : AxisDirection

  • translation : float3

  • rotation : quat4

mesh_shape(mesh: CollisionId; scale: float3 = float3(1f, 1f, 1f); translation: float3 = float3(0f, 0f, 0f); rotation: quat4 = quat4()): Shape

Create mesh Shape for Collider

Usage example:

let collisionId = request_collision_from_model("cube.fbx", "Cube0")
add_component(node, new Collider(shape = mesh_shape(collisionId)))
Arguments:
